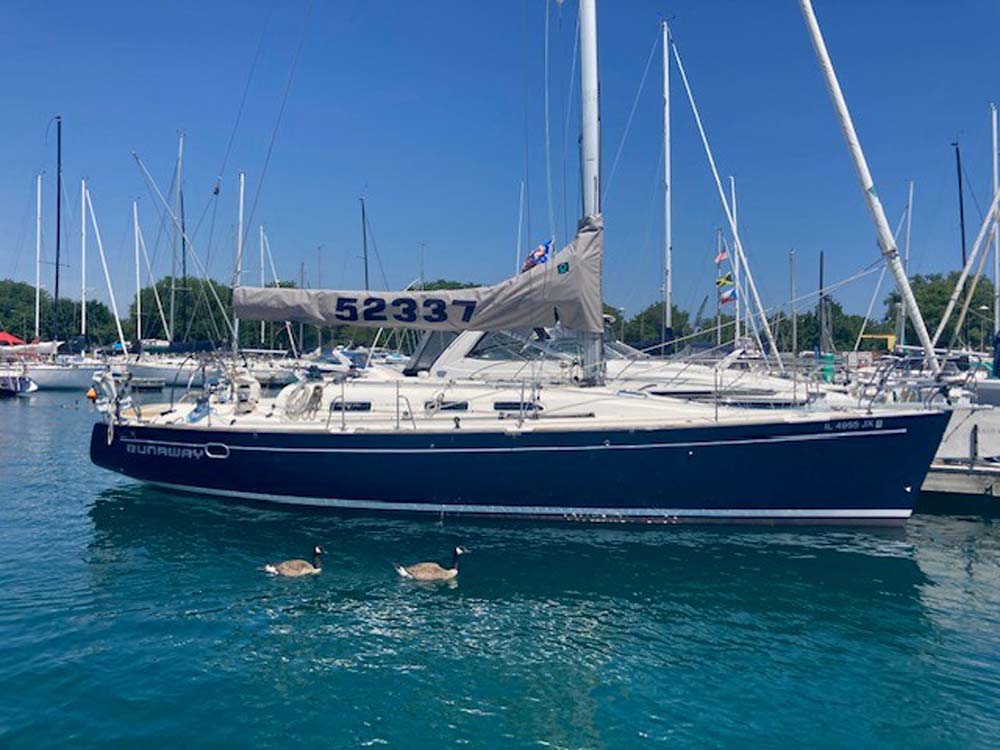

2005 Elan 40
$149,900
Rare Offering!!

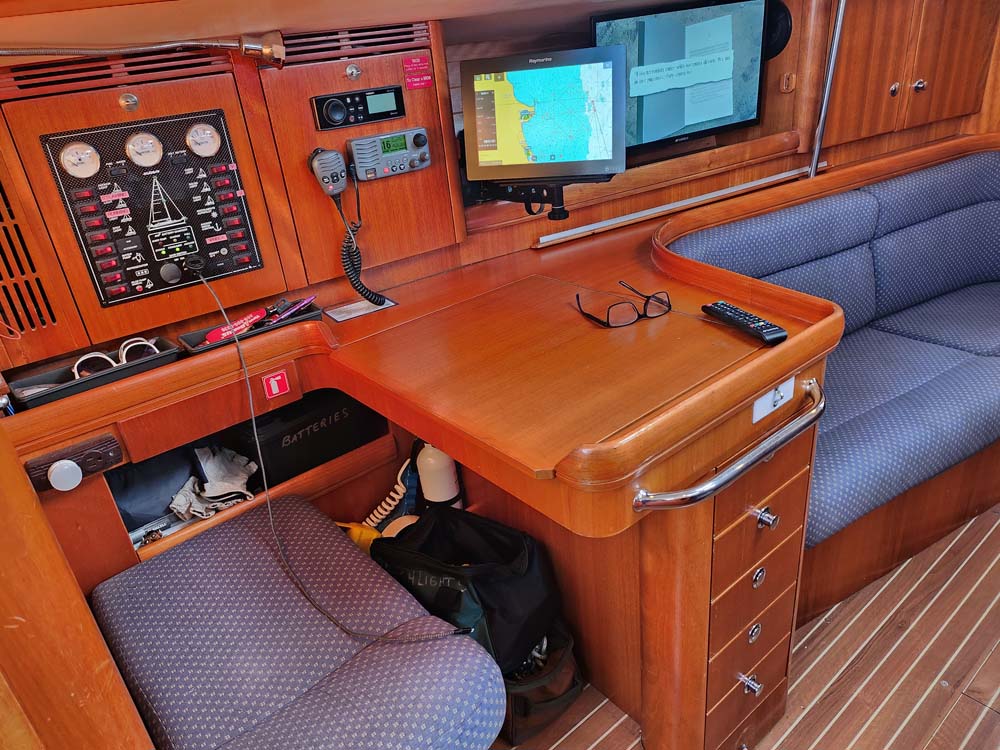

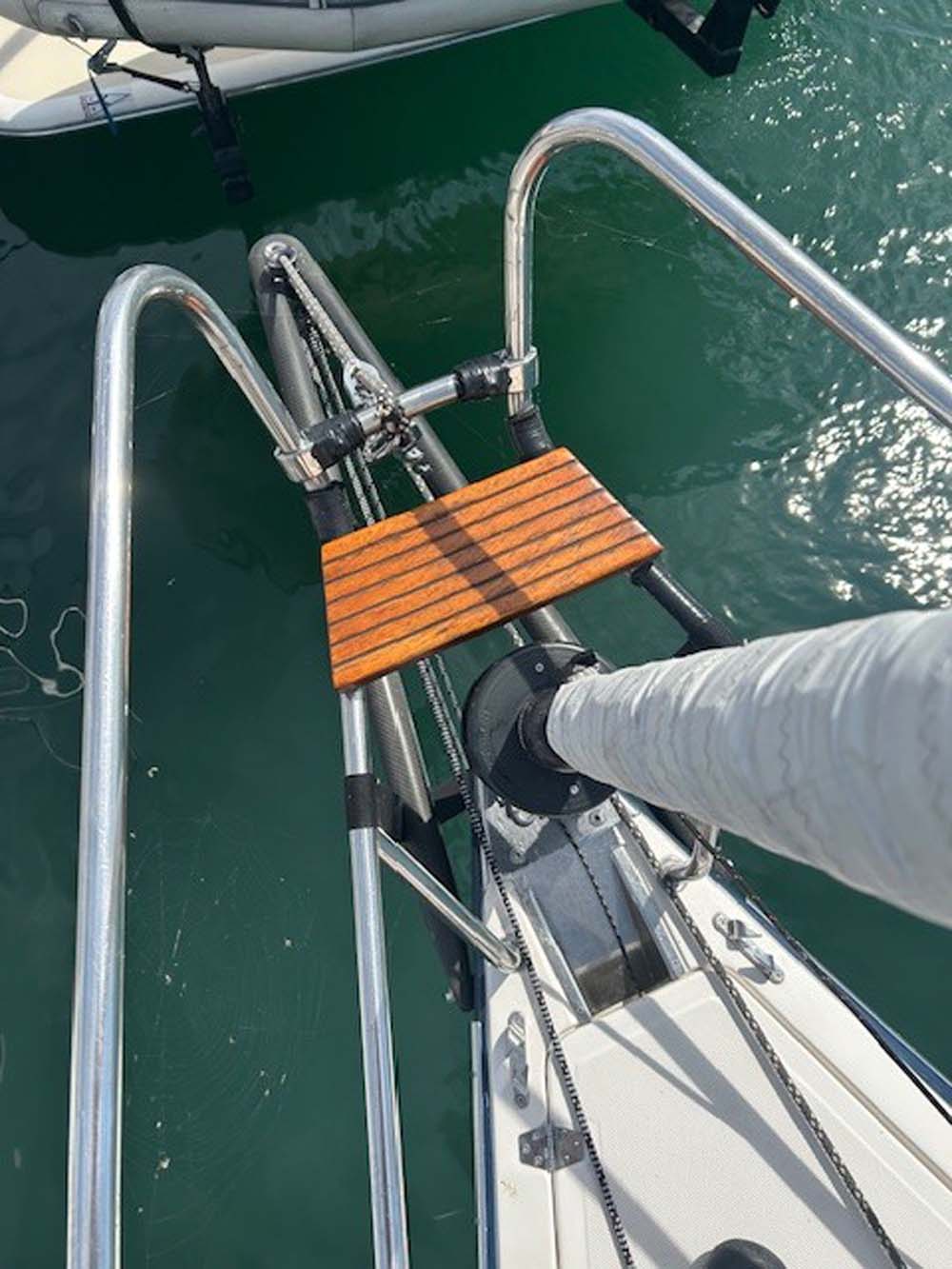

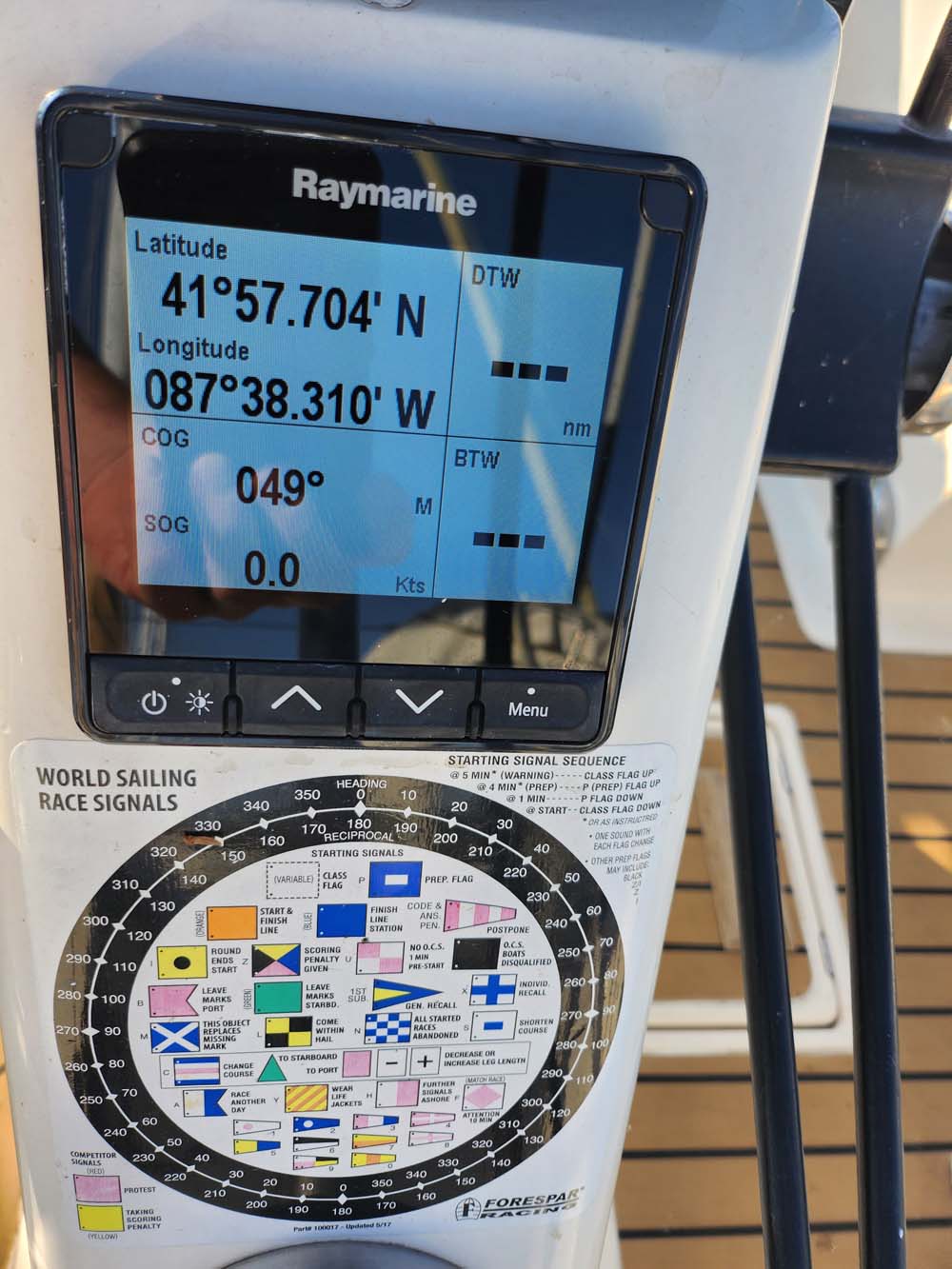

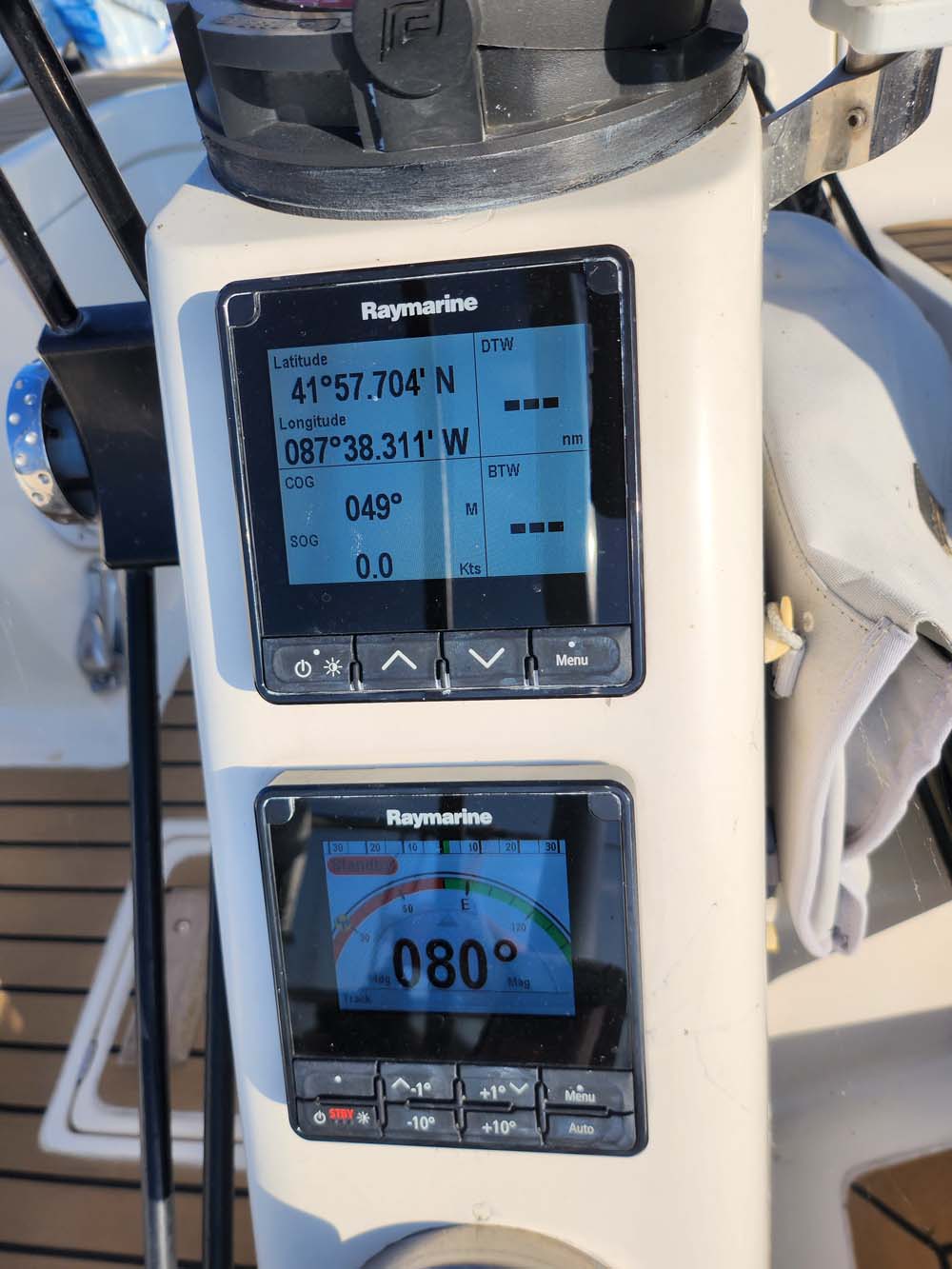

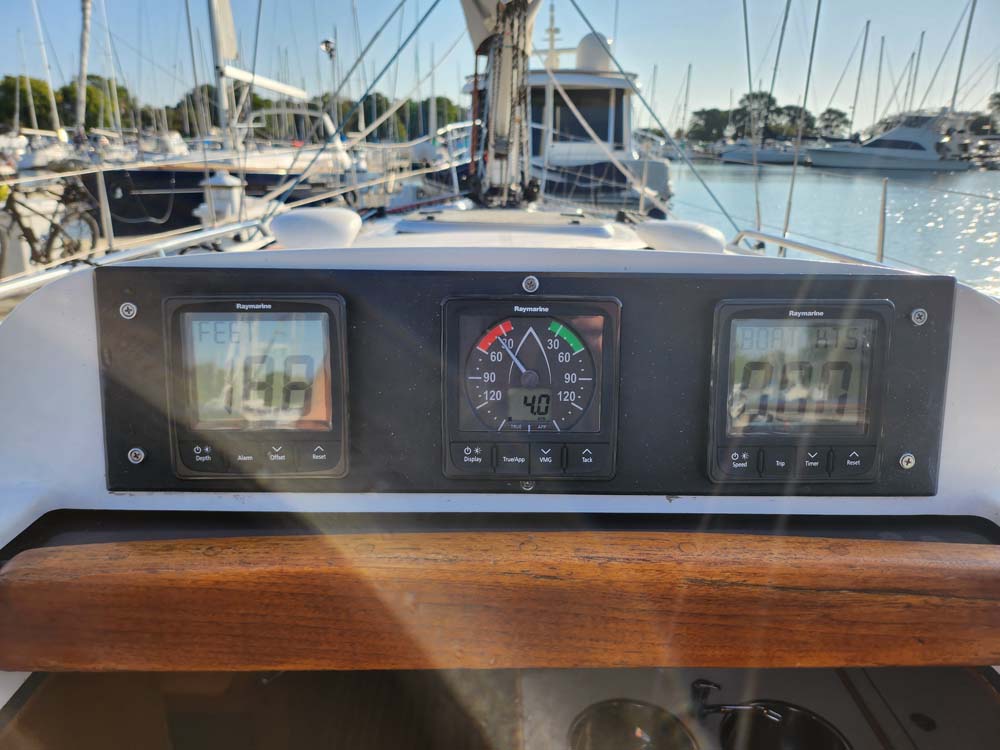

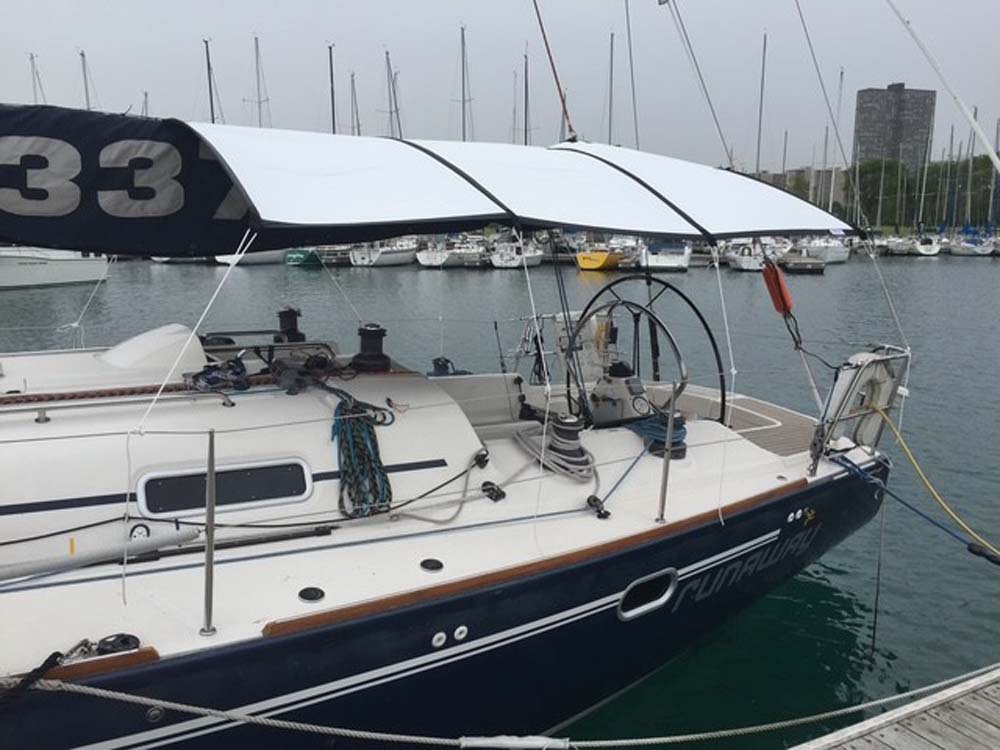

Sleek and attractive, the Elan 40 is built to sail quickly and easily with a structure designed to give any sailor confidence. Runaway is a beautiful example of this highly respected model. Fresh water only. She is fully equipped to either cruise or race, in fact she is a known winner on the Great Lakes. PHRF rating of 72 will keep you in the hunt for trophies. Raymarine electronics installed in 2021 include 12″ chartplotter, wind speed and depth, AIS radio and Sirius weather. The cabin is well thought out and has a cruising feel with AC and creature comforts. Don’t let that fool you though as a full complement of racing sails is included to create serious race aesthetics. Carbon spin pole and Trogear removable bowsprit.
The owner is a meticulous lifelong sailor/racer and has cared for and updated this boat without regard to cost! Â A rare offering at a decent price!
Other Details

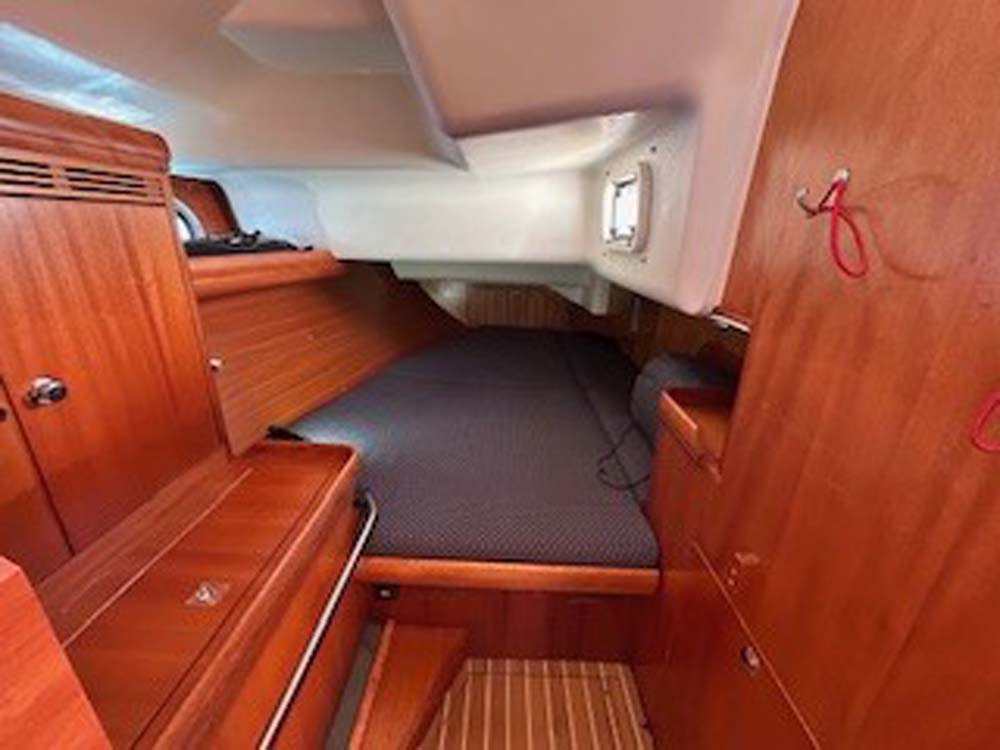

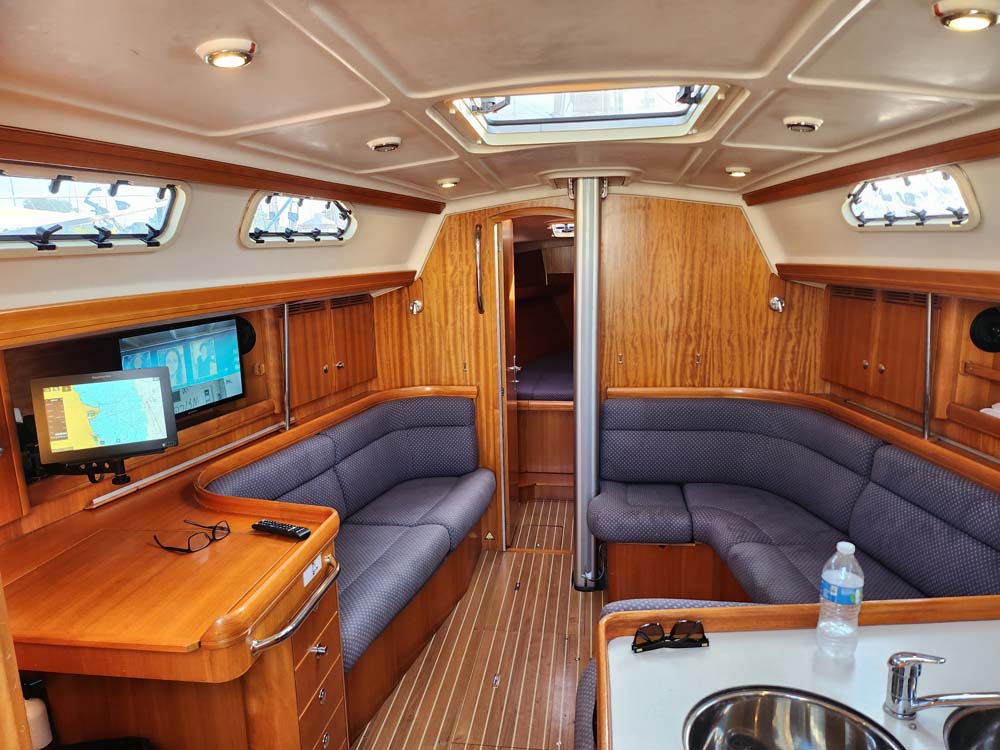

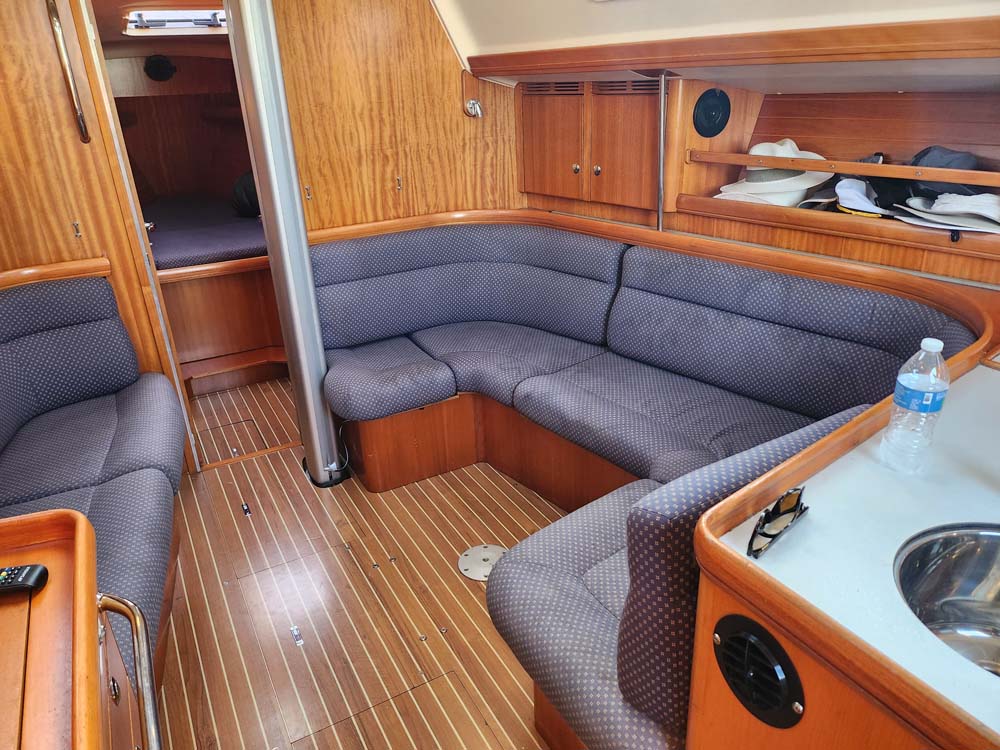

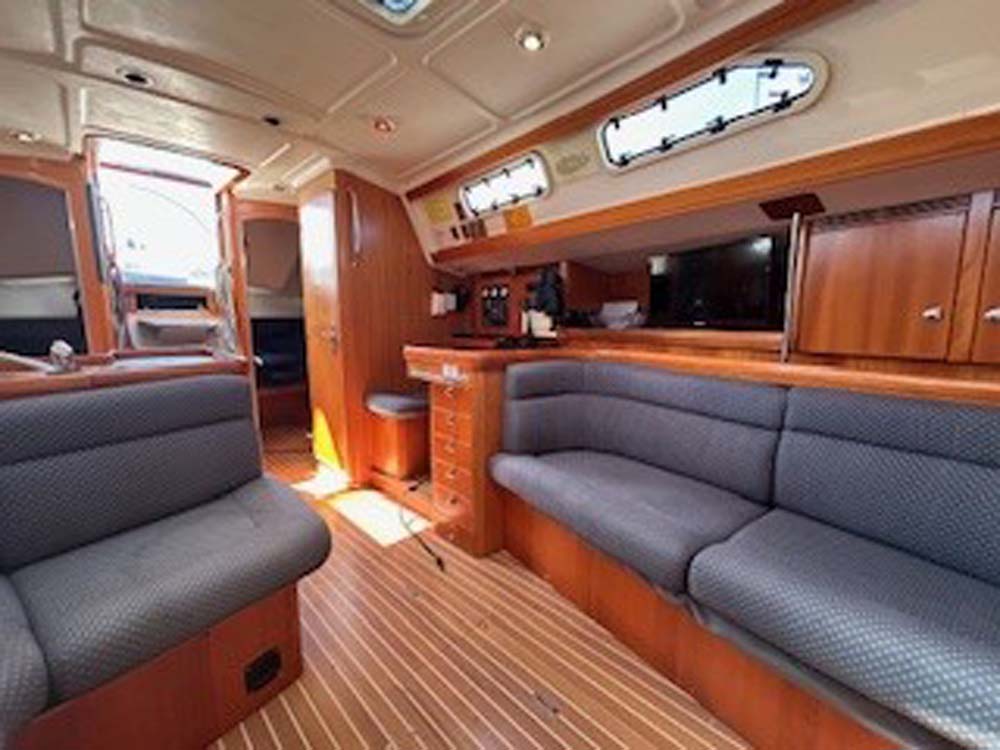

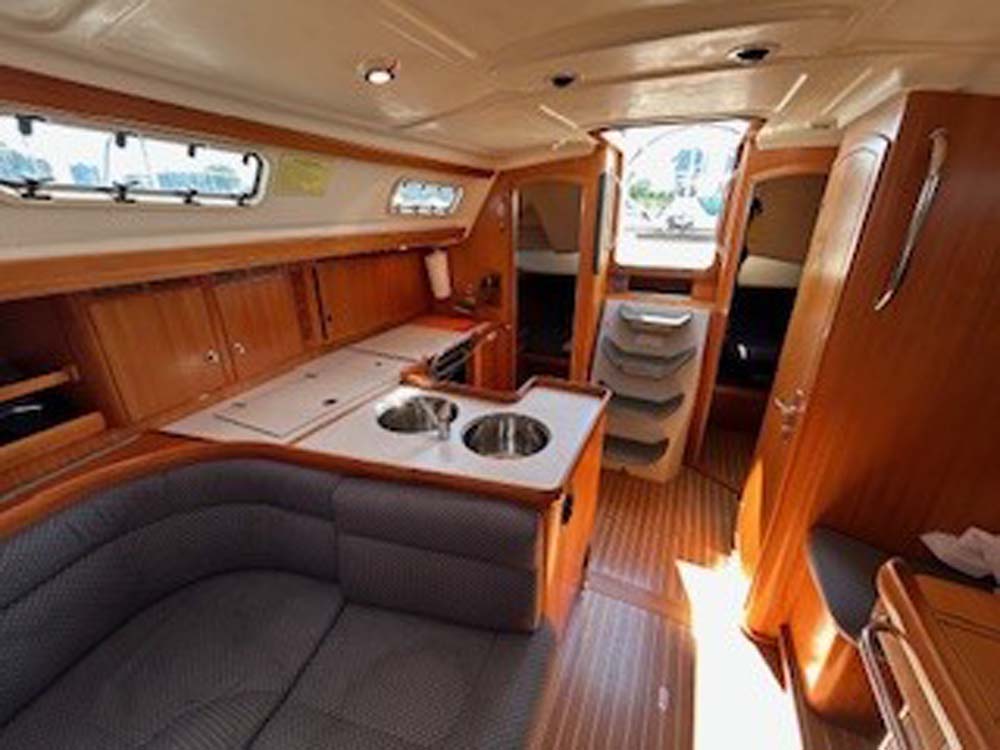

Accommodations
- 3 Cabin 2 Head layout
- Sleeps 6

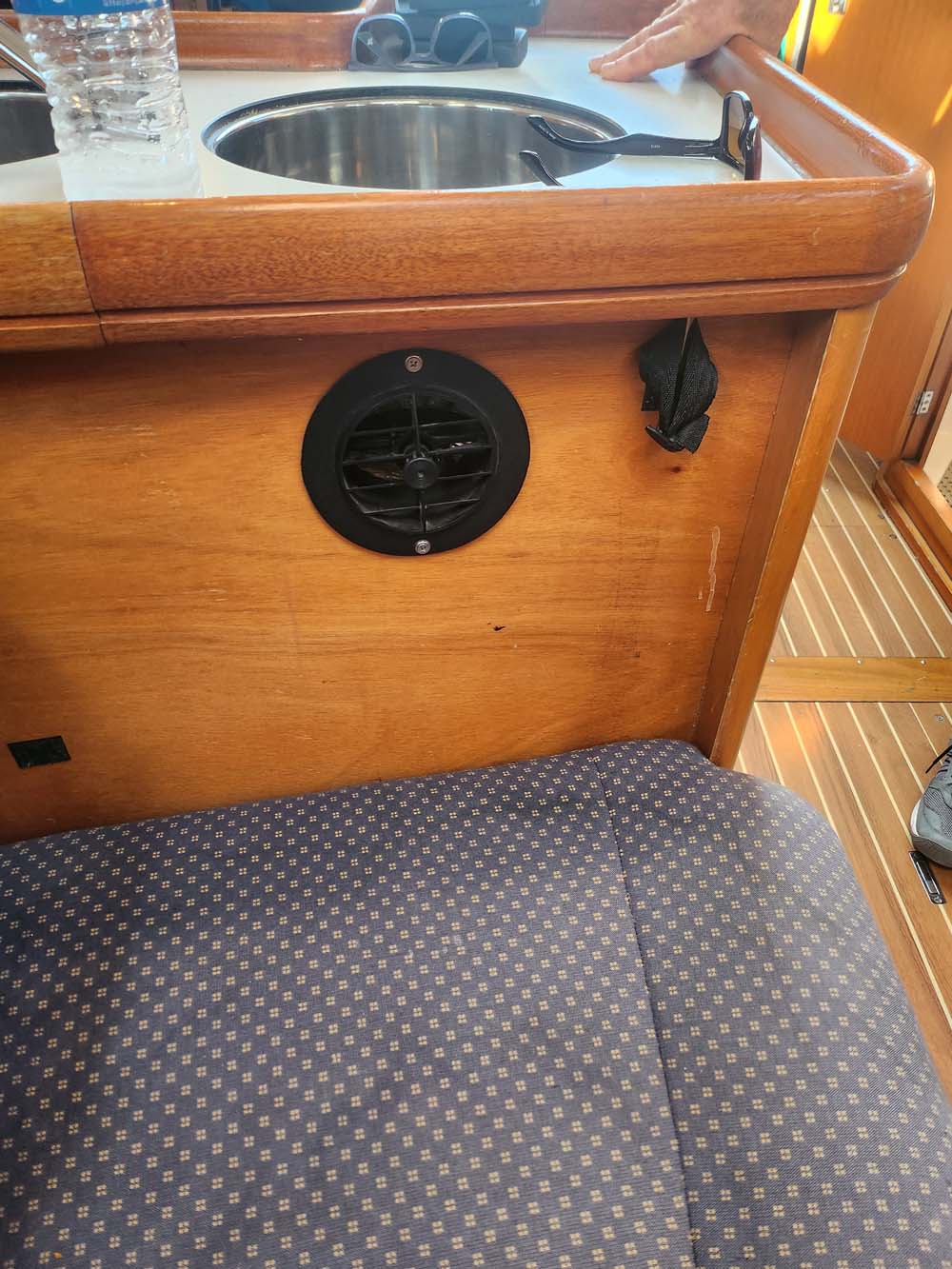

- AC in cabin

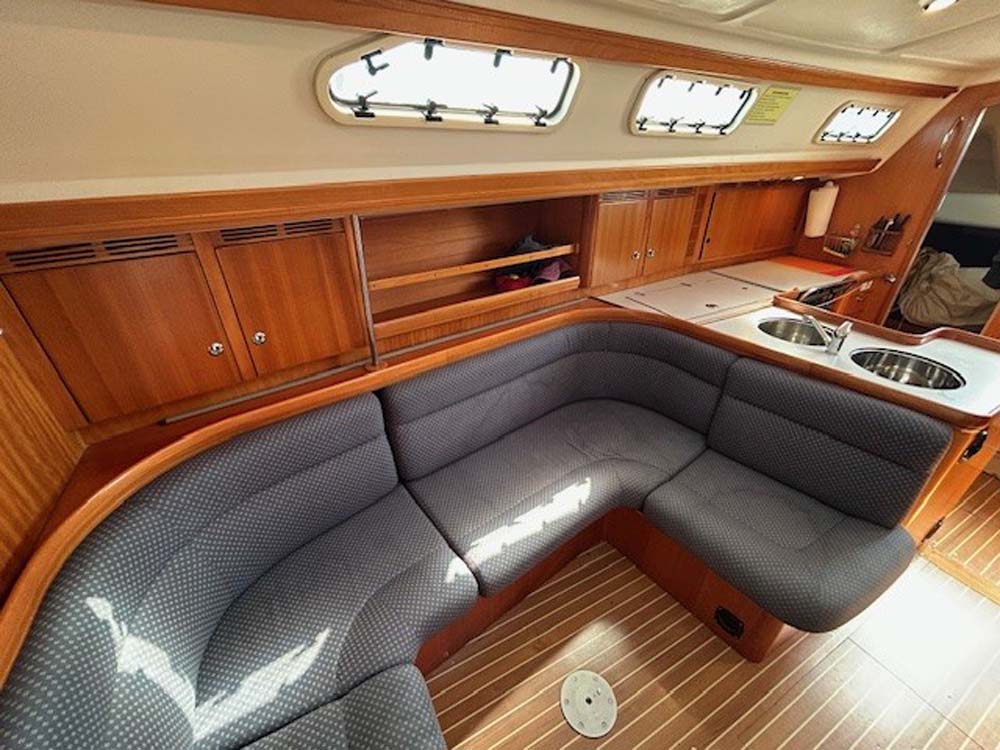

- Full galley

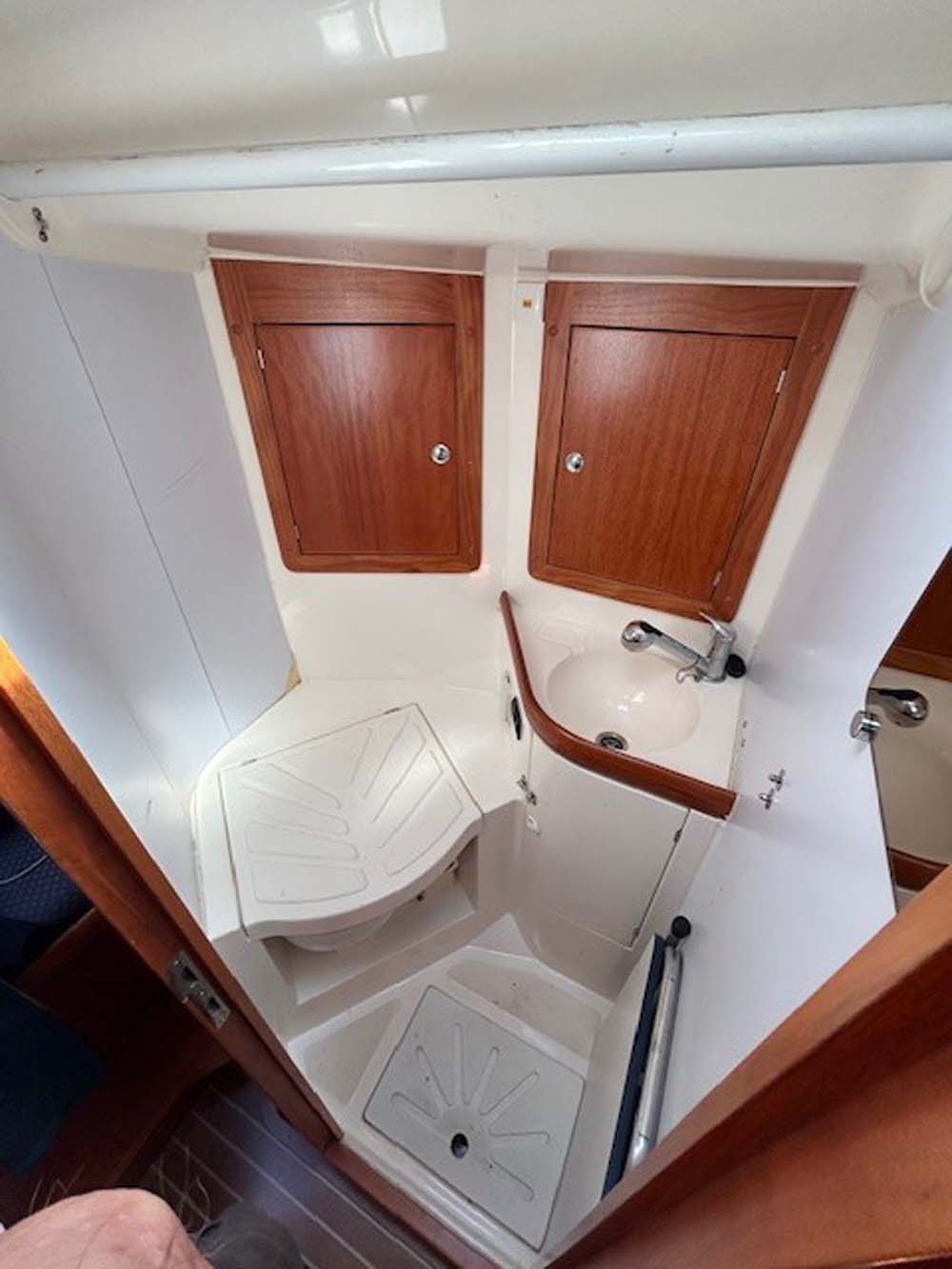

- Head with shower
Electrical
- 12 V circuit

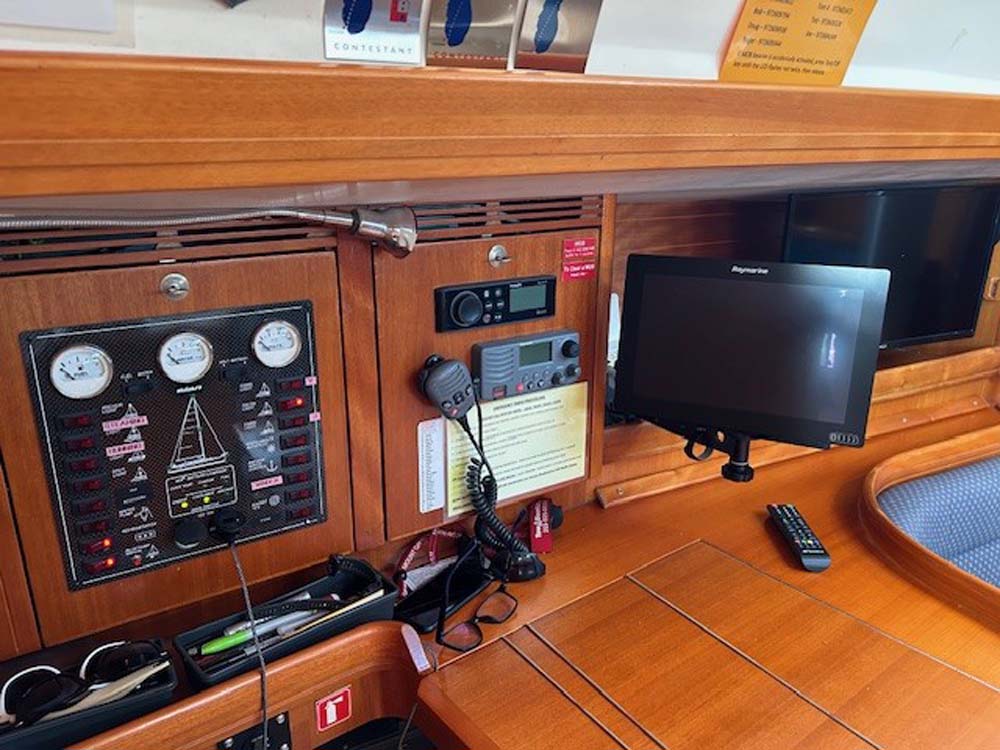

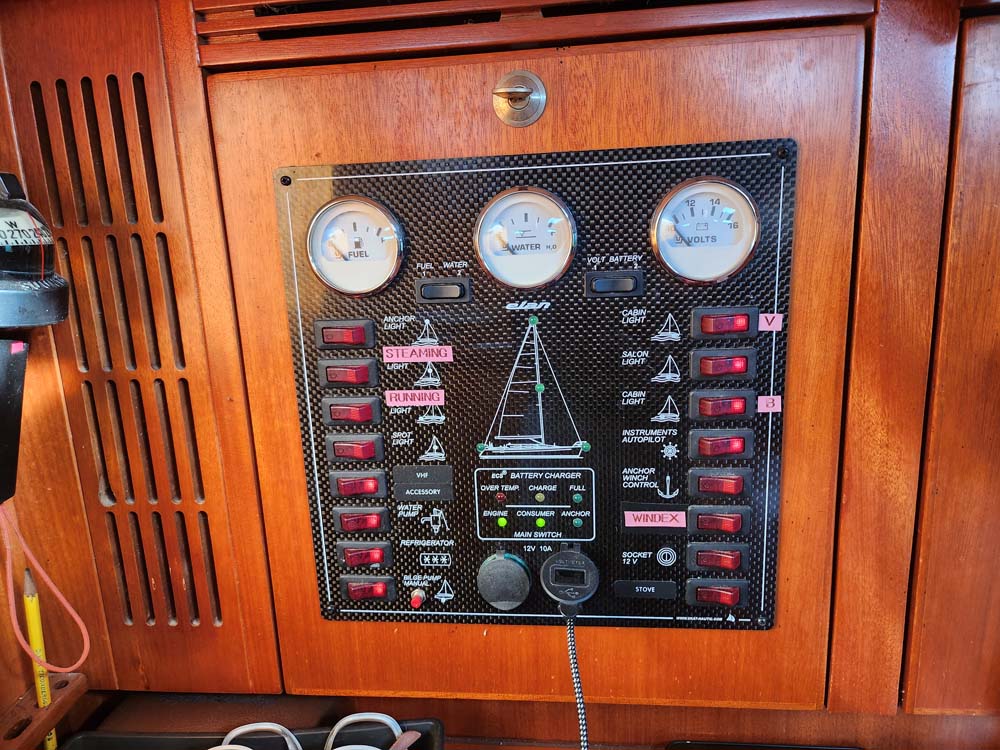

- Control panel with voltmeter for batteries, fresh water and fuel level indicator
- Two separate 12 V batteries (100 Ah engine and 100 Ah service)
- Engine alternator 60 A
- Navigation lights according to ColReg
- 2 x 12V plug on the control panel
Sail Area
I : 48.75 ft
J : 14.17 ft
P : 48.75 ft
E : 17.25 ft

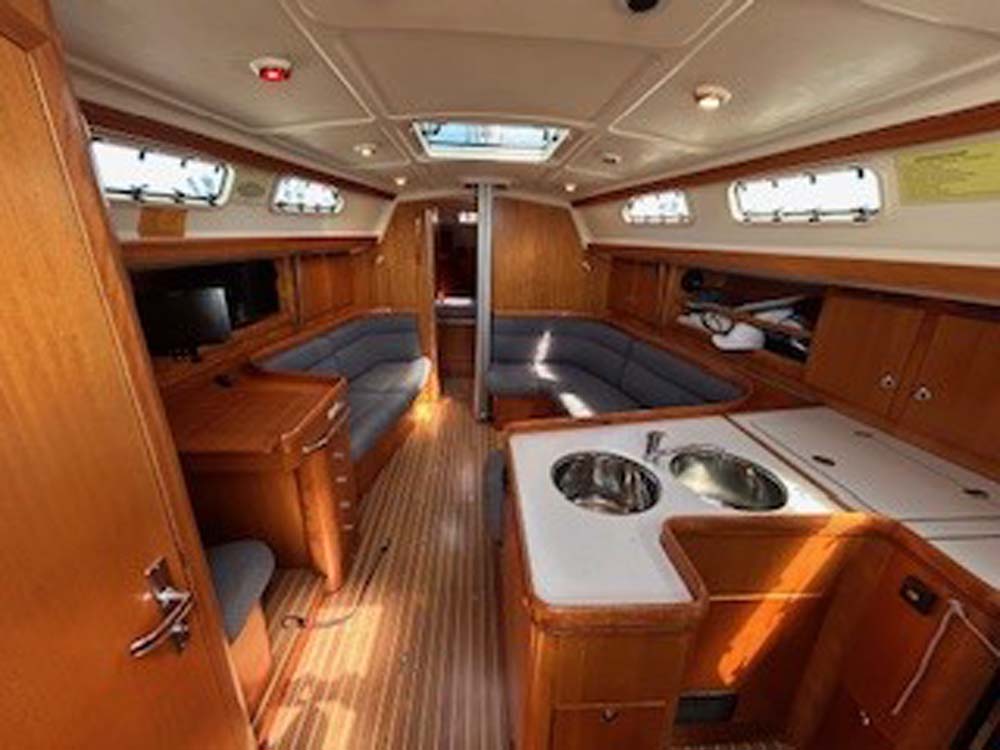

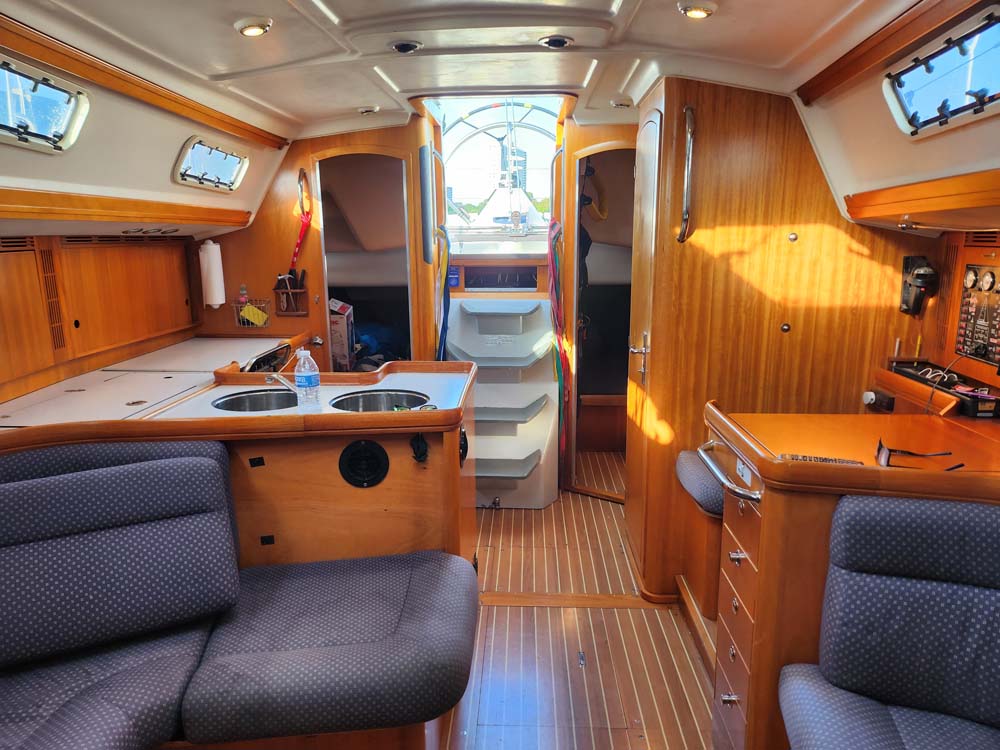

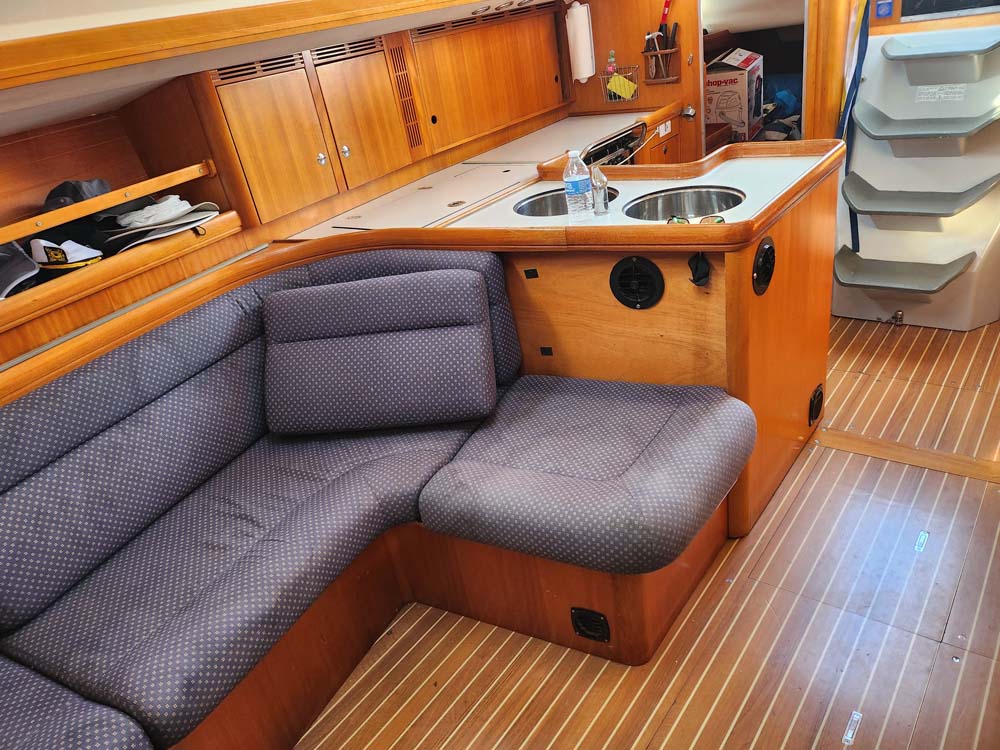

Below Decks
- Headroom 1920mm

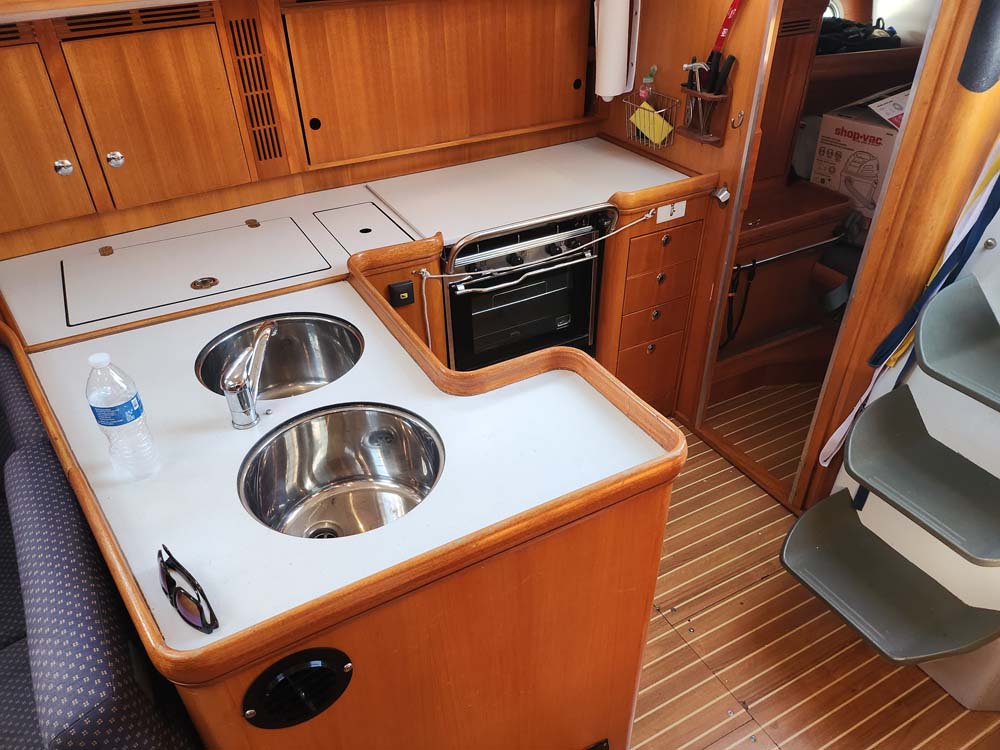

- L- shaped galley
- Top opening cool box (115 litres)
- S/S cooker 2 rings cooker with oven
- Double sink
- Tap with pressurized water system
- Lockers and drawers above and under the worktop
Mechanical
- Diesel engine 39 HP fitted with sail drive
- Engine control lever in cockpit
- Engine control panel
- Fuel tank
- Fuel filter with water separator
- 3 blade folding propeller

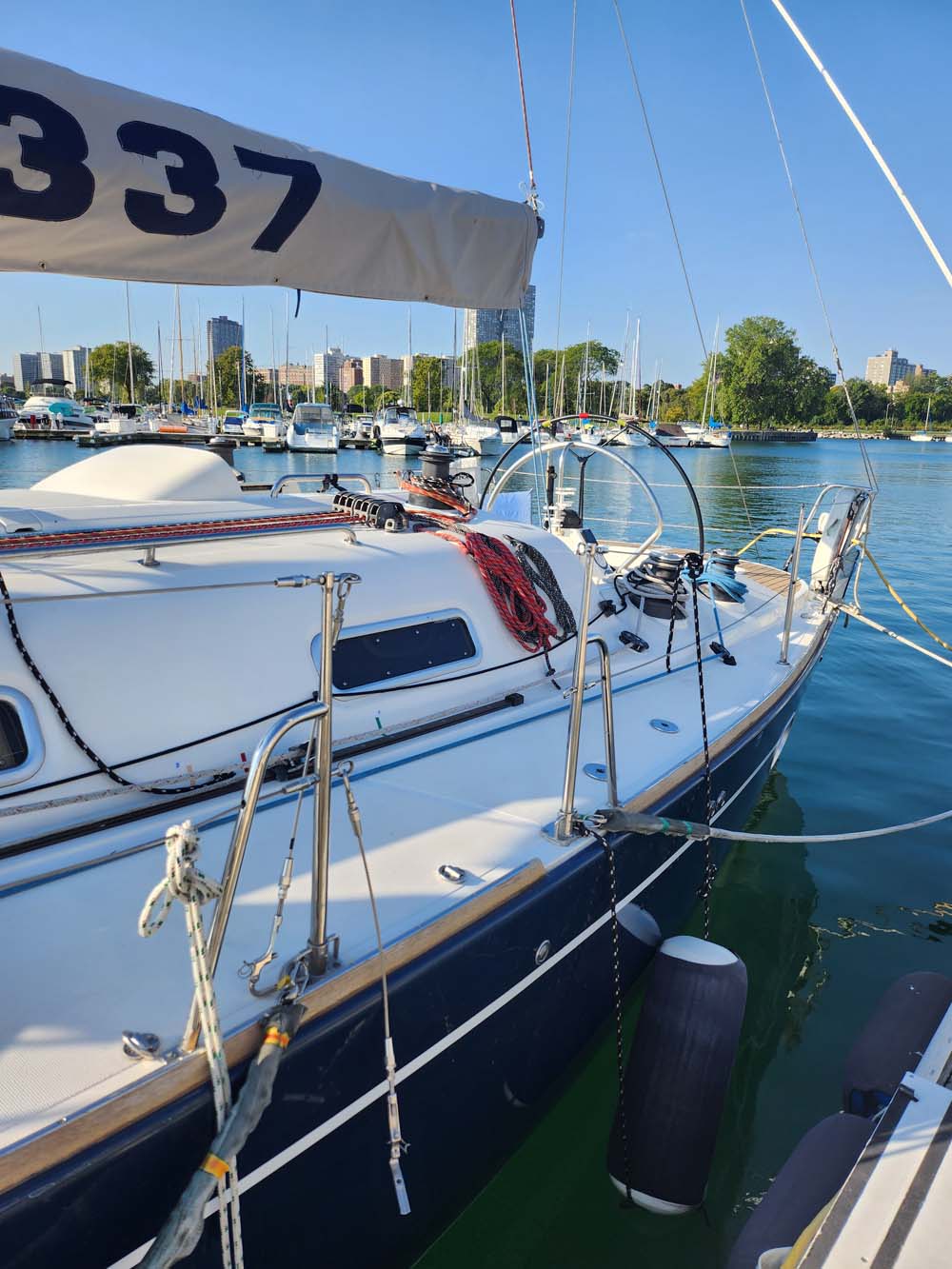

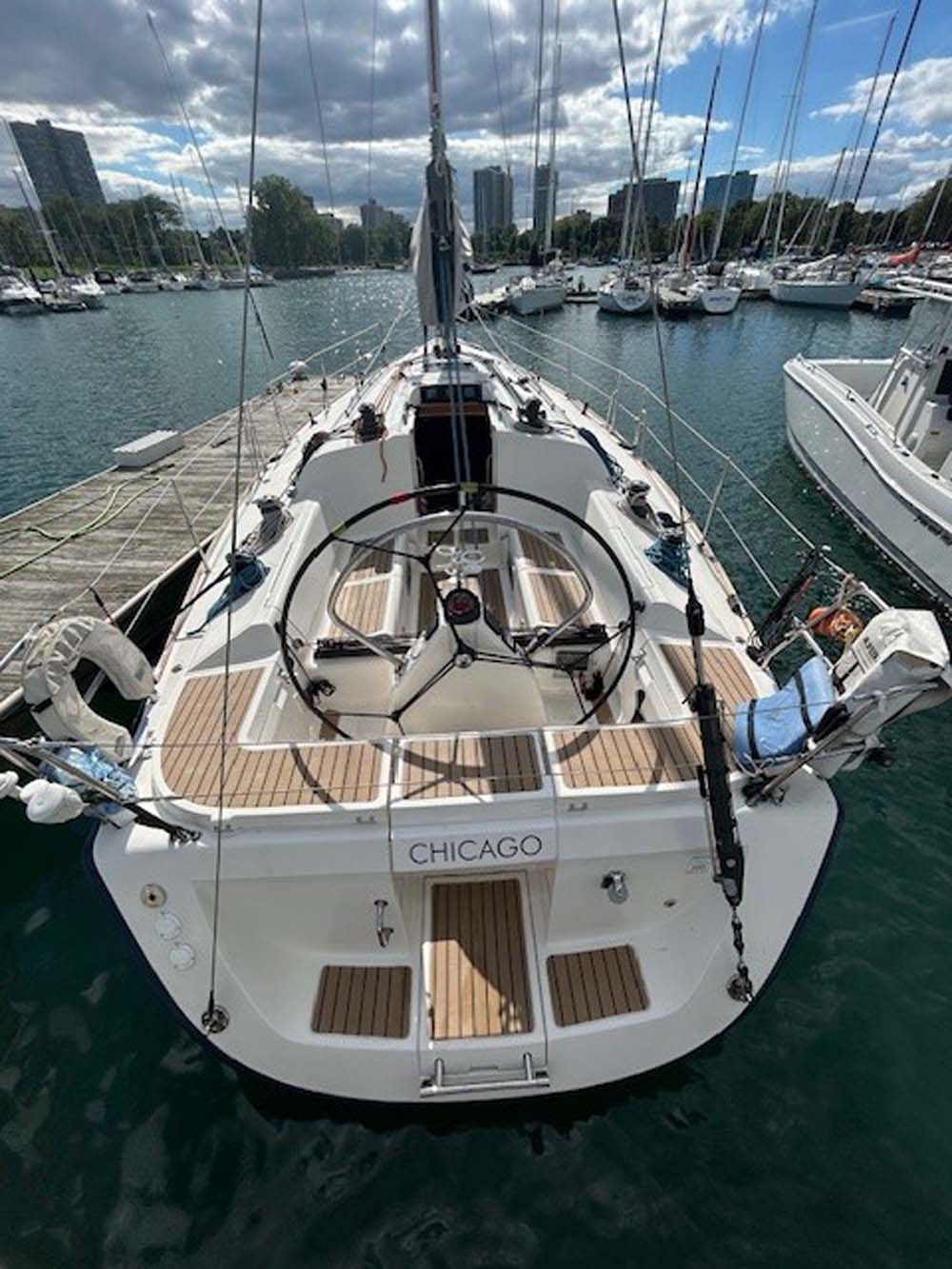

Deck
- S/S pulpits
- Pushpits and stanchions with lifelines
- Lifeline gates port and starboard amidships
- Chafe guards on top of toe rail
- 4 mooring cleats
- Teak toe rail
- 2 deck organizers
- 2 sets of clutches

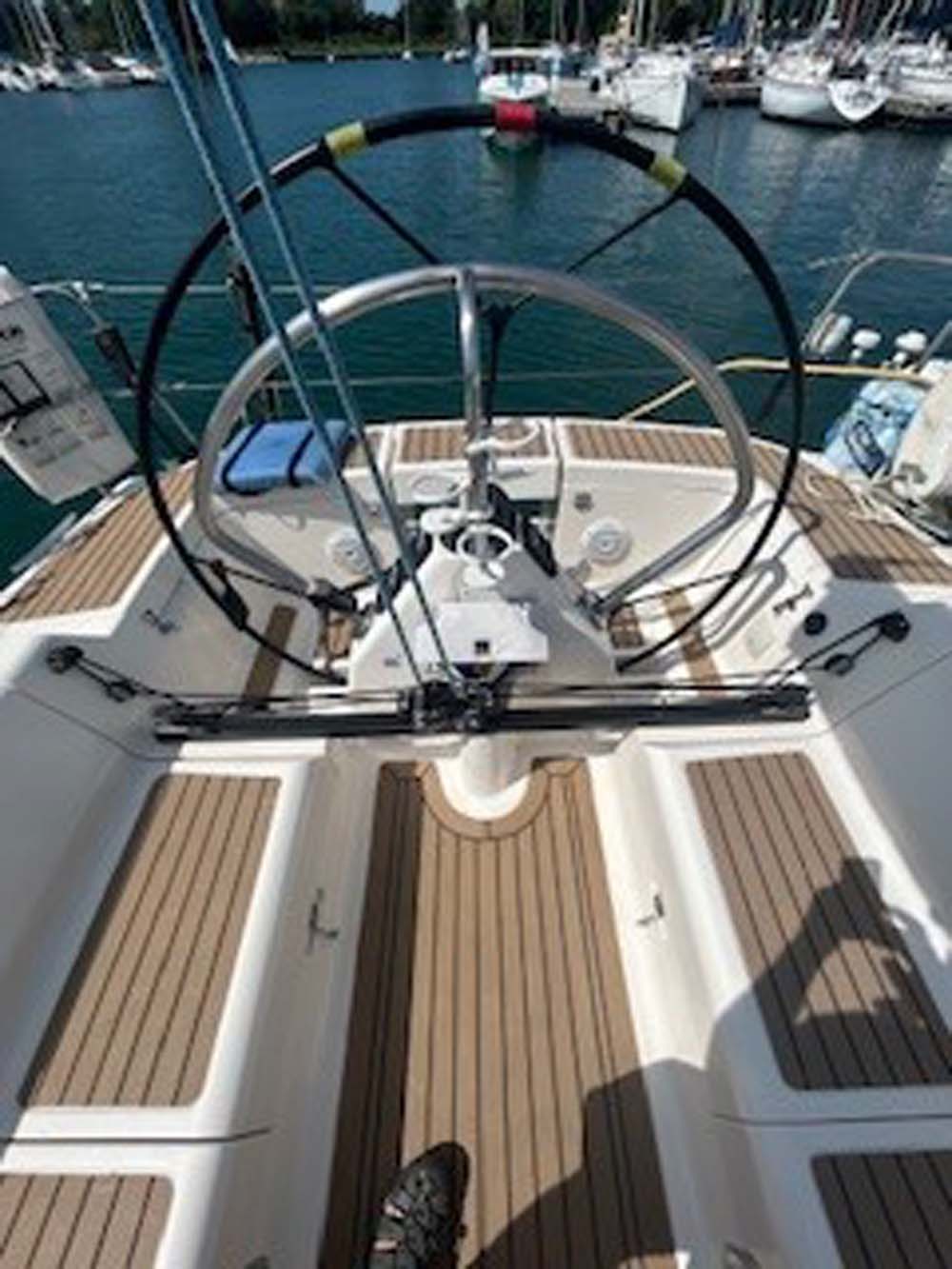

- Compass on the steering pedestal
- 1 winch handle bin
- 2 cockpit lockers on port and starboard side
- 1 gas bottle locker draining outboard
- S/S bathing ladder

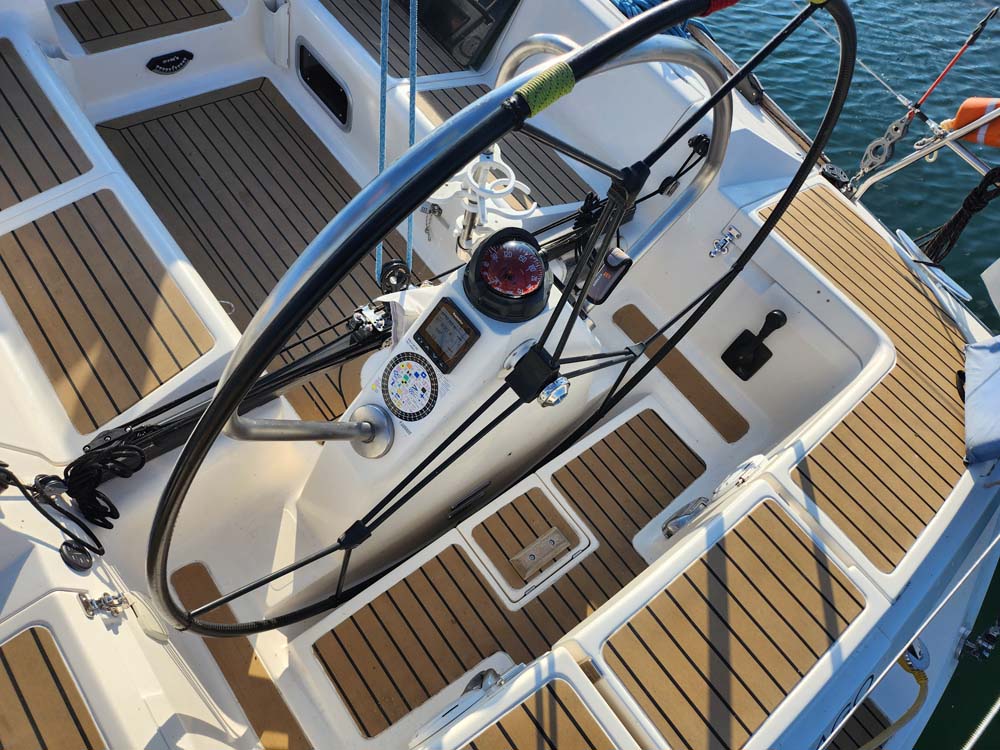

- Leather covered steering wheel
- Grabrails on coachroof
Sails & Rigging

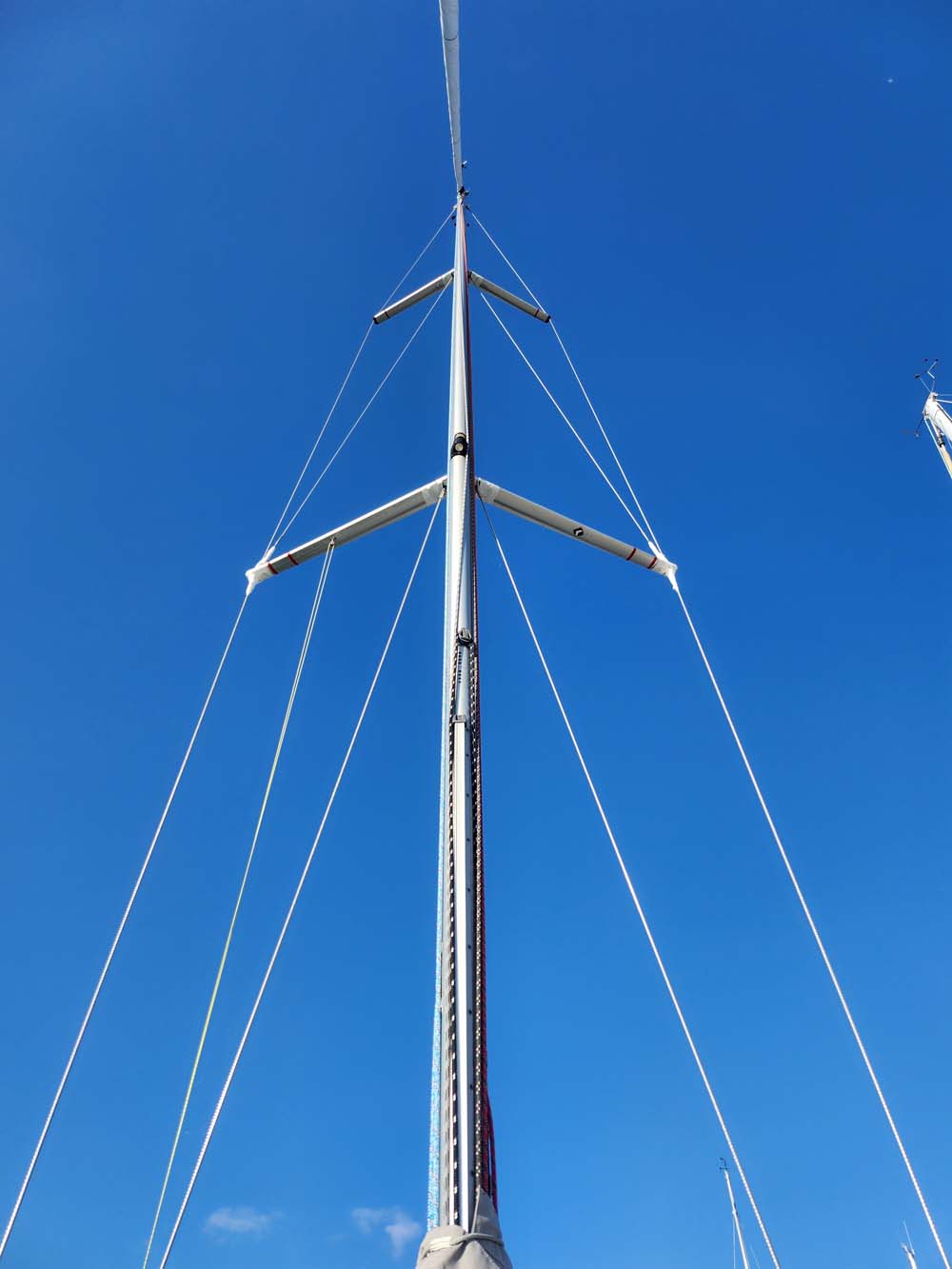

- Fractional rig
- Silver anodized aluminium keel stepped mast
- 2 sets of aft swept airfoil tapered spreaders
- Silver anodized aluminium single line reefing boom
- Stainless steel standing rigging
- Rigid vang with gas spring
- Windex
- 6 harken winches
- Halyards for main, jib, 2 spinnakers
- 2 genoa winches
- 2 genoa sheet tracks with genoa cars adjustable from cockpit
- Mainsheet traveler track adjustable from cockpit
- 2 Mainsails (one older but functional)
- A1
- A2
- A3
- Asymmetrical spinnaker to fly off sprit
- Symmetrical spinnaker to fly off pole
- Code 0
Construction
- Multiaxial laminate
- Isophtalic polyester resin for improved mechanical and chemical properties
- NPG (Neo Penttyle Glycol) gelcoat is used for ooptimal chemical resistance against osmosis and mirror finish
- Moulded inner structure glued and laminated to the hull.
Propulsion

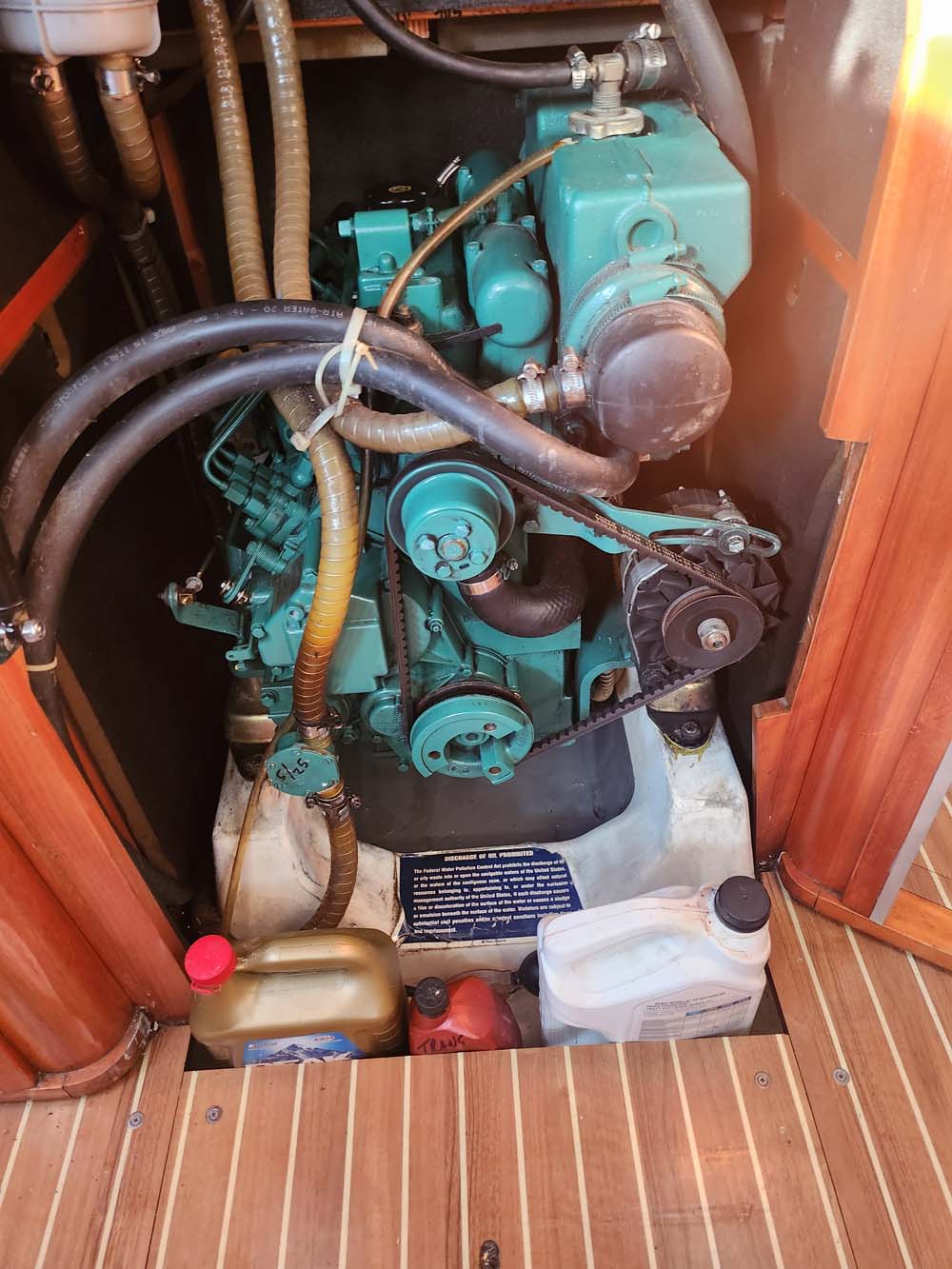

Engine Make:Volvo (Perkins)
Engine Model:4H3XM1 – 49M40
Engine Year:2005
Total Power:39hp
Engine Type:Inboard
Drive Type:Sail Drive
Fuel Type:Diesel
Propeller Type:3 Blade
Propeller Material:Bronze
Specifications
Dimensions
Length Overall:40ft
Max Draft:6.58ft
Beam:12.58ft
Length at Waterline:33.5ft
Weights
Dry Weight:17,416Lb
Miscellaneous
Electrical Circuit:12V
Hull Material:Fiberglass
Tanks
Fresh Water Tank:62 gal
Fuel Tank:30 gal
